D-PRO5 Van rack for Maxus E-Deliver7

Art. Nr:42-20602-L-DPRO5

With this van rack, you get a lot of storage in both shelves and drawers that fit the Maxus E-Deliver7.
1 422 £
Exclude 20 % vat

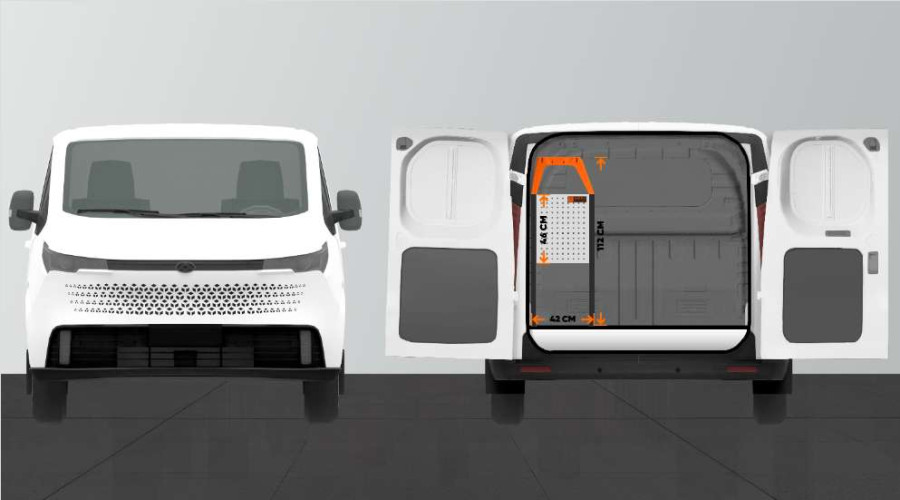

Dimensions

Length: 2555 mm
Height: 1120 mm
Width: 420 mm
Weight: 77.8 KG

Information

Mounting time: 281.56 Min
Shipped within: 1 Day
Warranty: 36 Mon
X
Add
Product information

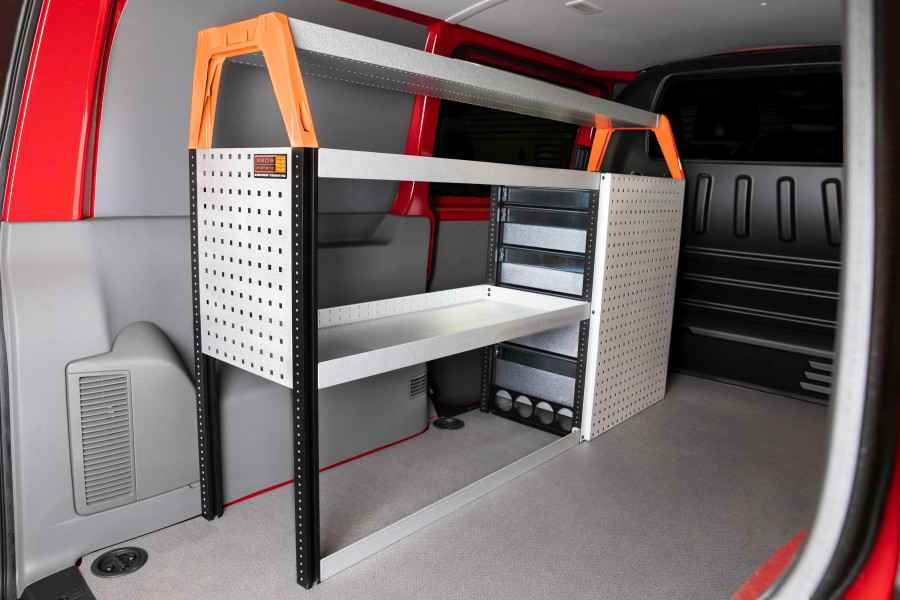

This is one of the most popular systems for Maxus E-Deliver7 L2 with a side door on the side where the shelf is. The shelf provides good storage options for tool cases and machines, as well as smaller assortments. You get a drawer unit with 5 drawers of varying sizes to give each item its own space. Behind the drawers is a tool panel for extra hanging options in the van. The drawers that go on ball bearing rails are often supplemented with our new drawer inserts and dividers to create the best structure. Adding our Smartboxes to the side panels is also a popular option for maximising storage space.

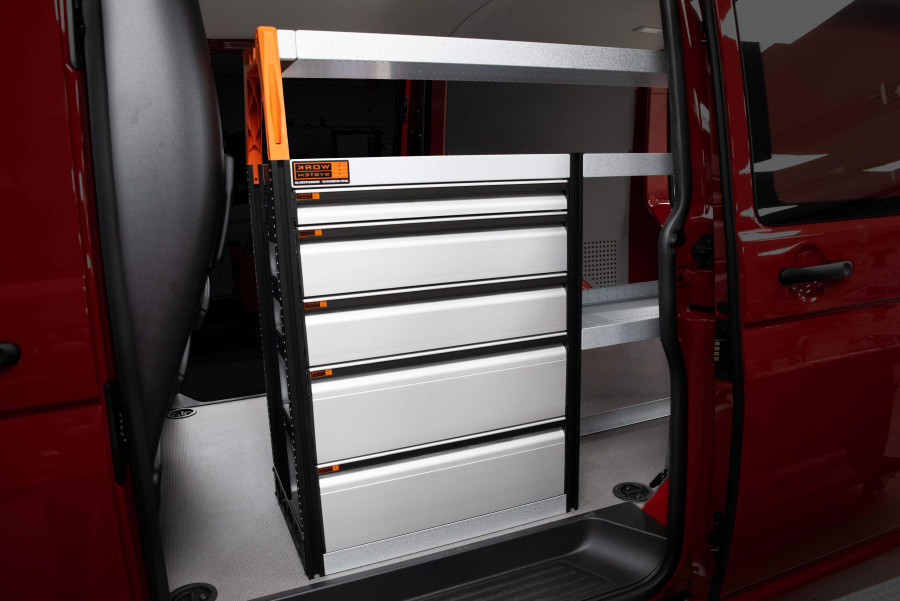

Drawers: (internal dimensions)
Front drawer unit
1 x W: 579 mm, D: 387 mm, H: 60 mm
2x W: 579 mm, D: 387 mm, H: 130 mm
2x W: 579 mm, D: 387 mm, H: 200 mm
(may vary)
The accessories in the picture are not included, but they are of course available for purchase.

The price excludes fitting details. Fitting method is chosen in the next step.
Instructions for assembly are included.

Van racks from Work System are manufactured in Sweden and carefully developed to withstand heavy loads.

End profiles
Work System ends in black anodised aluminium have been carefully developed and tested for several years. All to create the ultimate profile. This has resulted in a very light and strong design with extensive areas of application. Use it for our standard systems, double floors, smart floors, folding shelves or why not something completely customised and unique? With our corner junctions and angles, the possibilities are almost limitless. Products and parts can be fastened directly in the drilled holes with C/C 17.5 mm using our taptite screws, without having to thread the holes beforehand! Parts and products can also be attached to the aluminium profile's grooves, but here our profile's slot nuts are infinitely variable in this application. Perfect for tool boards, for example, that you want to adjust in height according to your particular equipment.
-6063-T6 aluminium material
-15 micrometre thick black anodising
-ACT tested
Tool board
Our systems come with tool boards that increase storage space and possibilities even further. The tool boards are made of 1 mm aluminium with 15 micrometre thick transparent anodising that allows the tool boards to withstand tough environments and conditions while retaining their appearance. Don't lay things loosely on the floor. Save space and time by hanging them on our systems instead! Our tool boards can be fitted with smart accessories, such as:
-Smart boxes for storage of spray cans, bottles, etc. Available in widths of 230mm, 330mm and 1200mm.
-Smartbox glue tube for storage of up to 8 glue tubes.
-Smartbox tube for storage of pipes or larger drills and tools. Available in widths x depths of 50x50mm, 70x70mm and 105x105mm.
-We have a large selection of different hooks to hang everything from cables to tools.
Drawers with Alufront
Work System's new generation of drawers combine design and functionality. The box chassis is made of 0.7mm AZ185 anti-fingerprint Dx51 steel plate. This surface treatment provides very good protection against corrosion and creates a light and soft feel. This surface treatment is used in very tough outdoor environments, such as roofs and gutters. The entire front of the drawer is made of aluminium with a unique solution on the locking handle that goes from side to side, which means that you can open the drawer regardless of where you grip the locking handle. This combination of steel plate and aluminium results in a very light box but without compromising on strength and the robust construction required for the harsh conditions to which our boxes are subjected. We have equipped our drawers with heavy-duty telescopic ball-bearing slides that give a soft and smooth feel when opening and closing. All our telescopic rails have an extension of 100% of their rail length.
Complement your boxes with:
-Rubber mats for a softer surface and noise reduction.
-Dividers to divide the box into several sections, creating even more order.
-Plastic bins for smaller assortments that are also offered with dividers so that you can mark what each bin contains.
-Labels that can be attached to the locking handle so that you can see what each individual drawer contains.
