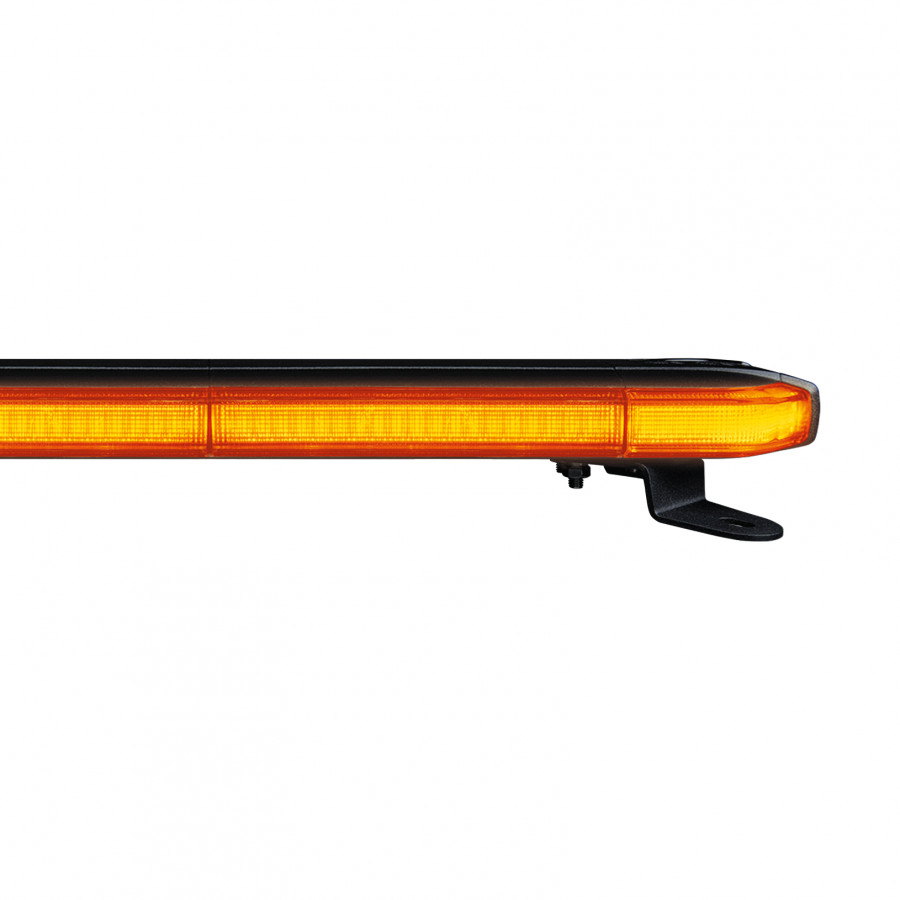

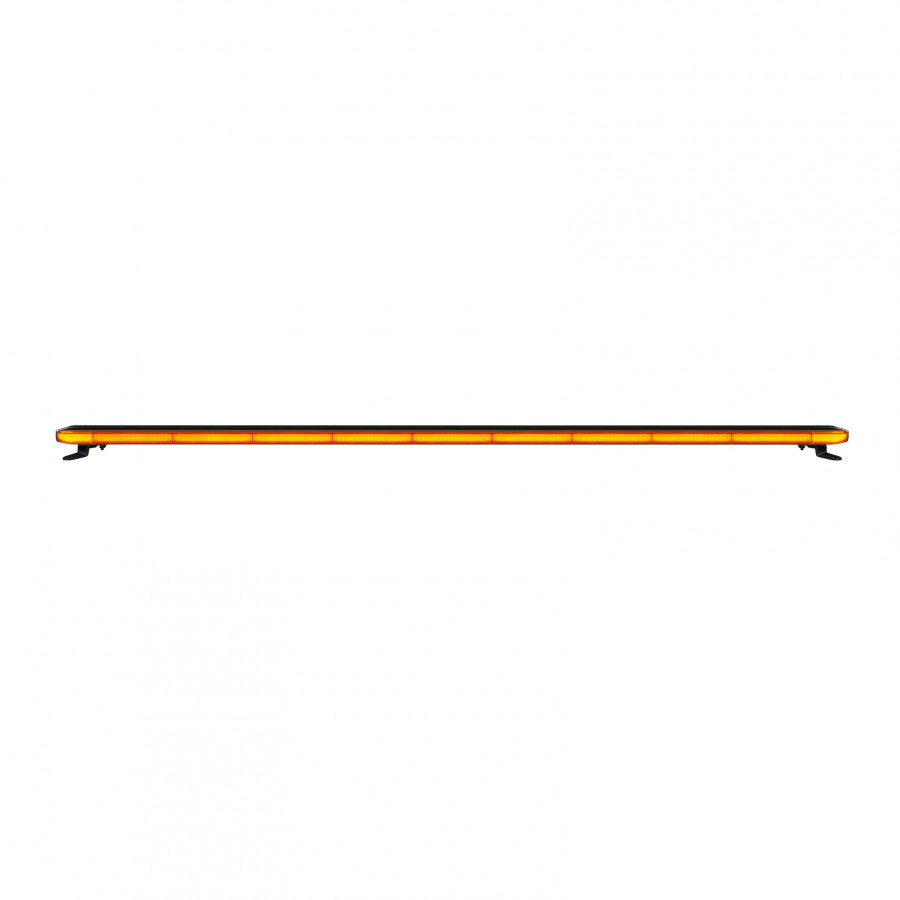

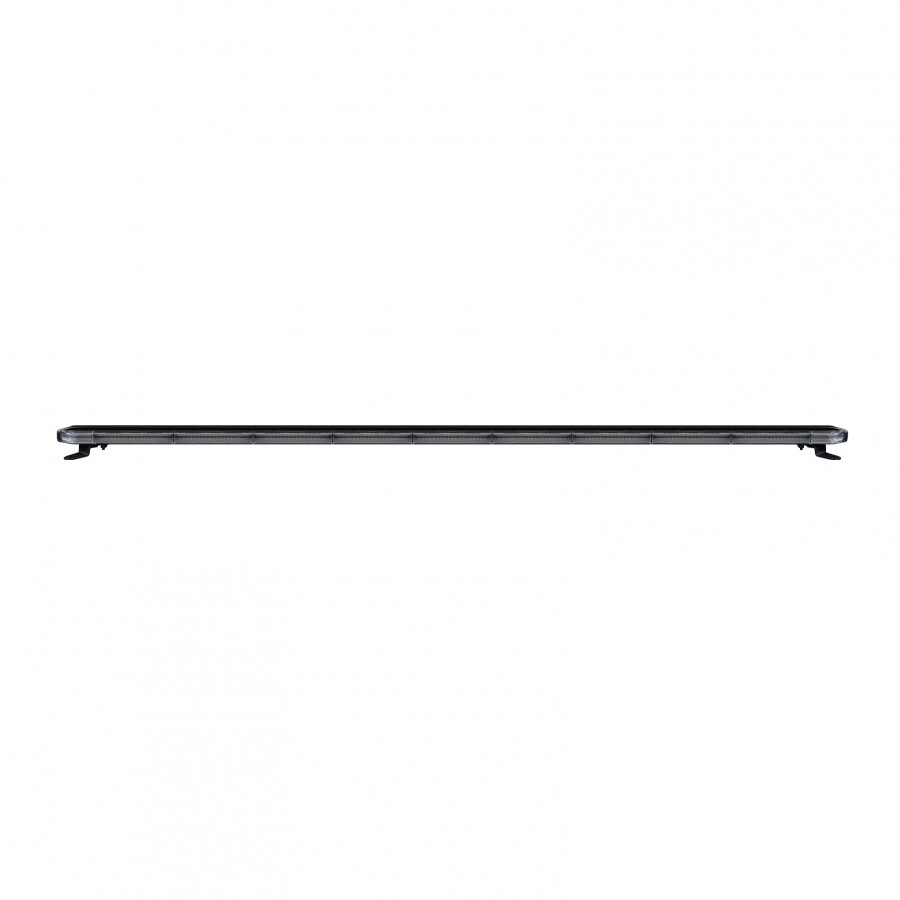

CRUISE LIGHT ROOF BAR WARNING LIGHT BAR 1532,4MM

With the warning light bars from the Cruise Light series, you will be seen in an entirely new way. Wherever your mission takes you, you can work safely with the Cruise Light warning light bars in different sizes for a perfect fit.

When you use the Cruise Light series, we guarantee visibility and safety and an appealing styling effect with 13 different warning light patterns – where Cruise Light’s amber glow is one of them. The warning light bars can be used with the Cruise Light Control Unit from Strands Lighting Division. The control unit can control all the warning light patterns as well as switch the warning light bar on and off. (Part. no. 83-CL-CB).

All sizes are E-approved according to ECE R65 class 1 and class 2 and the entire series comes with a 3-year functional guarantee. The warning light bars get a slim design with a height of only 36 mm and a width of 120 mm. Installation is easy with the included brackets and can be used together or separately on all types of commercial vehicles in different types of work situations. Wherever your mission takes you the Cruise Light series makes you in charge, ready to become one with your passion.

Type of LED — XKR, Smalite
PCS LED´s — 432
Voltage (V DC) — 10-30V DC
Consumption (w) 12V — 120
Consumption (w) 24V — 120
Patterns — 13
IP-class — IP67
Colour housing — Black
Colour lens — Clear
Colour LED´s — Amber
Connection — Cable
Cable length (mm) — 5000
Material bracket — Stainless steel
Material housing/chassi — Polycarbonate
Material lens — Polycarbonate
Length (mm) — 1534
Depth (mm) — 120
Height (mm) — 36
Height including bracket (mm) — 66
Operating temperature — -40°C - +65°C
E-approved — Yes
According to regulation — ECE R65 Class 2
EMC — ECE R16
Black cable — - (Negative)
Red cable — + (Positive)
White cable — Data A for control box
Blue cable — Data B for control box
Yellow cable — Pattern switch
Mounting details included — Brackets, screws
