WORK FLARE, DUO L - Warning light

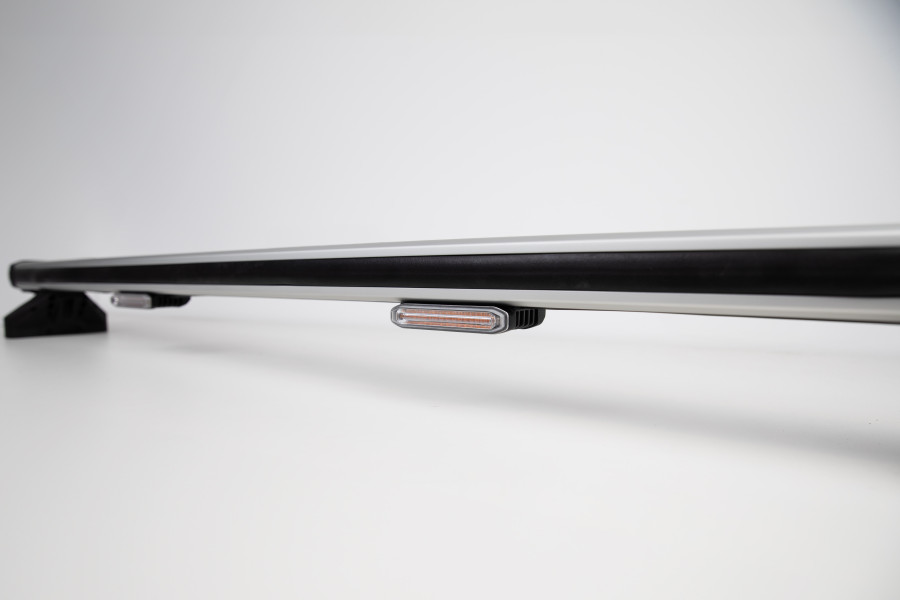

Work Flare is a revolutionary all-in-one solution for warning lights that seamlessly integrates into our Work Bar roof racks (sold separately). With a single product, you replace warning light bars, beacons, rotor lights & strobe lights. The unique design with plug-and-play installation combines simplicity and smart features such as optimized cable routing. You also avoid compromises and maintain full load capacity on your Work Bar roof racks.

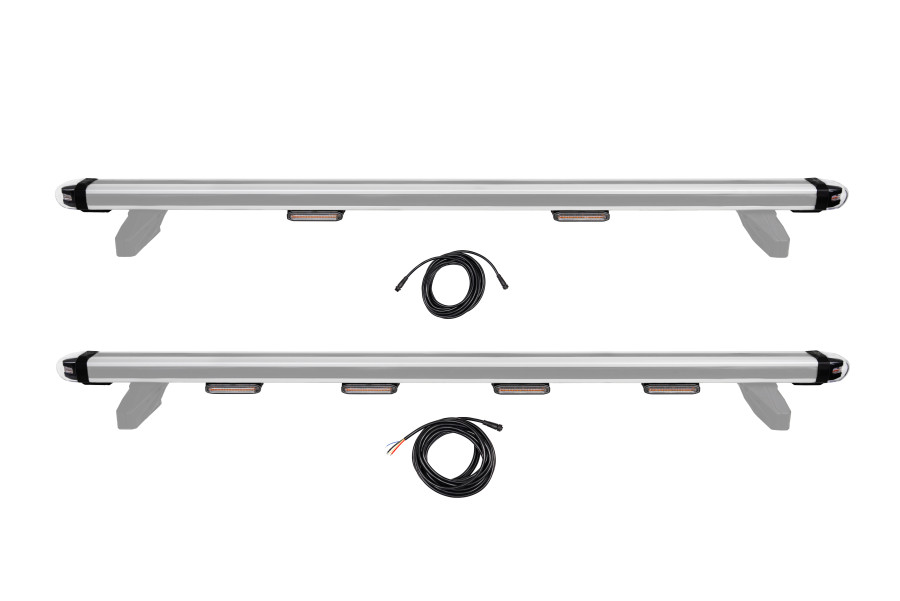

Included in the kit

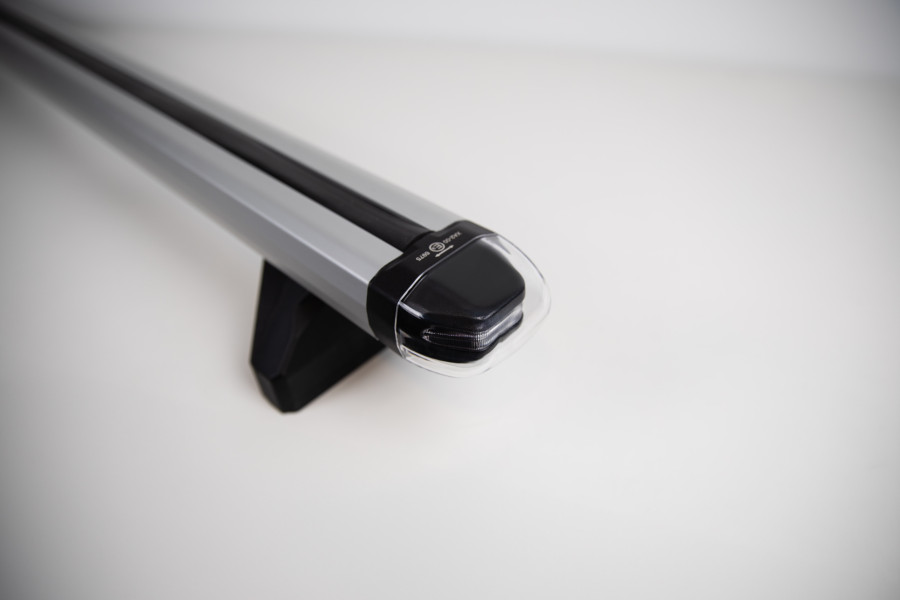

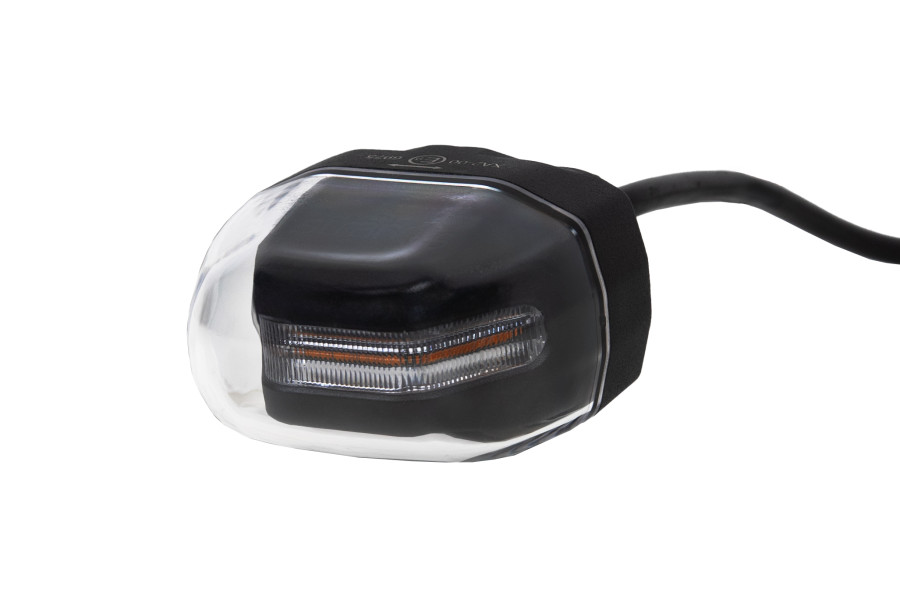

4 pcs — Work Flare Edge

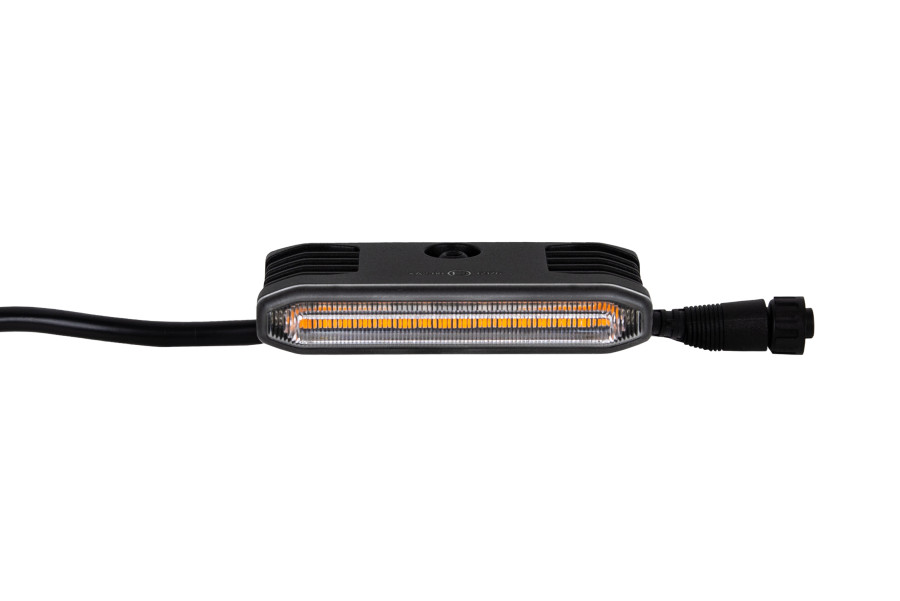

6 pcs — Work Flare Beam
1 pc — Work Flare 8.0 m starter cable
1 pc — Work Flare 5.5 m extension cable
1 pc — Work Flare 0.8 m extension cable

Note! Work Bar roof racks are sold separately

Specifications

Lamp type — LED
Number of LEDs/per unit — 16/24 pcs
Voltage — 10-48V DC
Consumption 12V — 124 W
Consumption 24V — 124 W
Number of patterns — 2 pcs
Actual lumens/per unit — 620/1800 lm
1 lux @ m/per unit — 32/30 lx
Kelvin — 1650 K
Housing color — Black
Lens color — Clear
LED color — Amber
Connector — M12 DIN
Mounting material — Stainless steel
Chassis material — Aluminum
Lens material — PC
Operating temperature — -40 ~ +65°C
E-approved — Yes, according to ECE R65 XA2
EMC — ECE R10

Connection

Black cable — -(negative)
Red cable — +(positive)
Blue cable — Night mode
Yellow cable — Synchronization
