WORK FLARE, SOLO M - Warning light

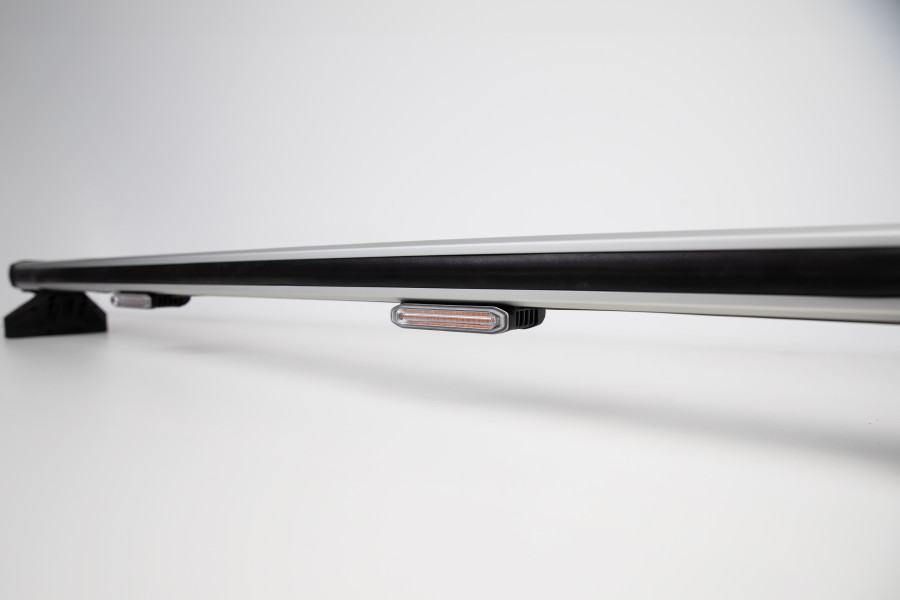

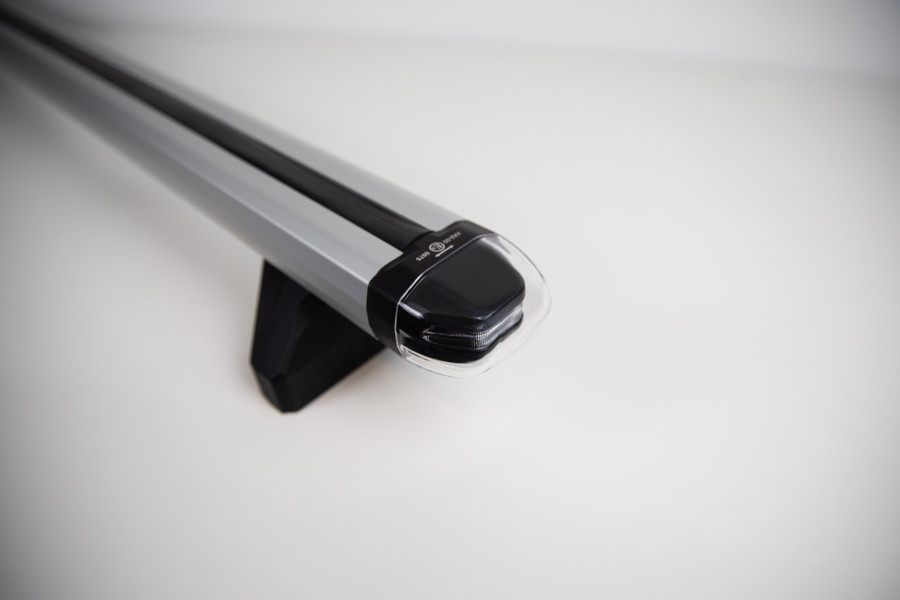

Work Flare is a revolutionary all-in-one solution for warning lights that seamlessly integrates into our Work Bar roof racks (sold separately). With a single product, you replace warning light bars, beacons, rotor lights & strobe lights. The unique design with plug-and-play installation combines simplicity and smart features such as optimized cable routing. You also avoid compromises and maintain full load capacity on your Work Bar roof racks.

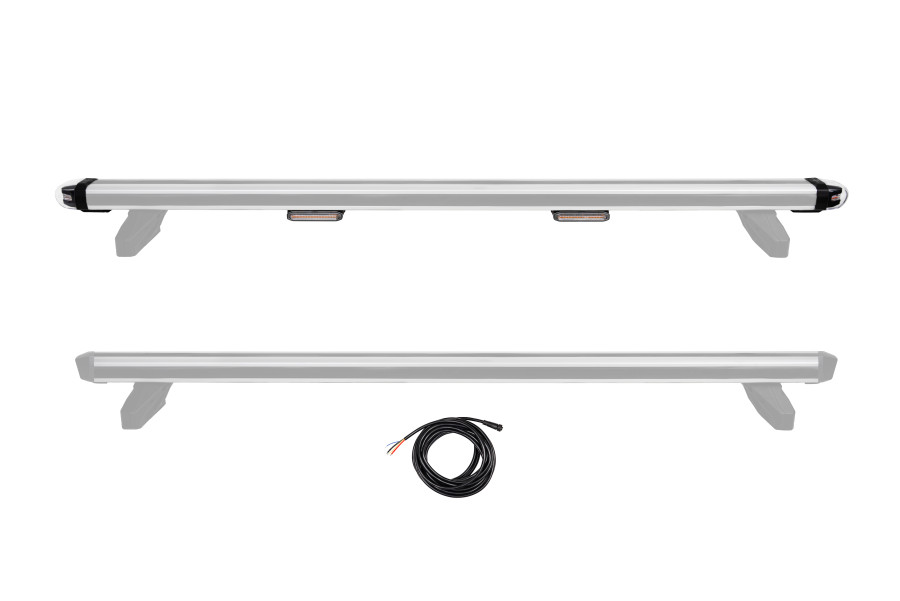

The kit includes

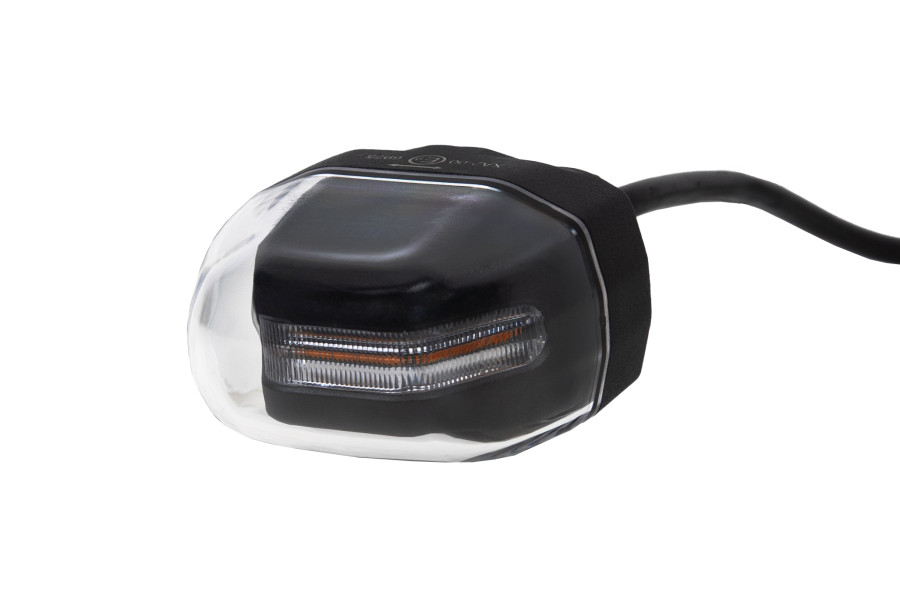

2 pcs — Work Flare Edge

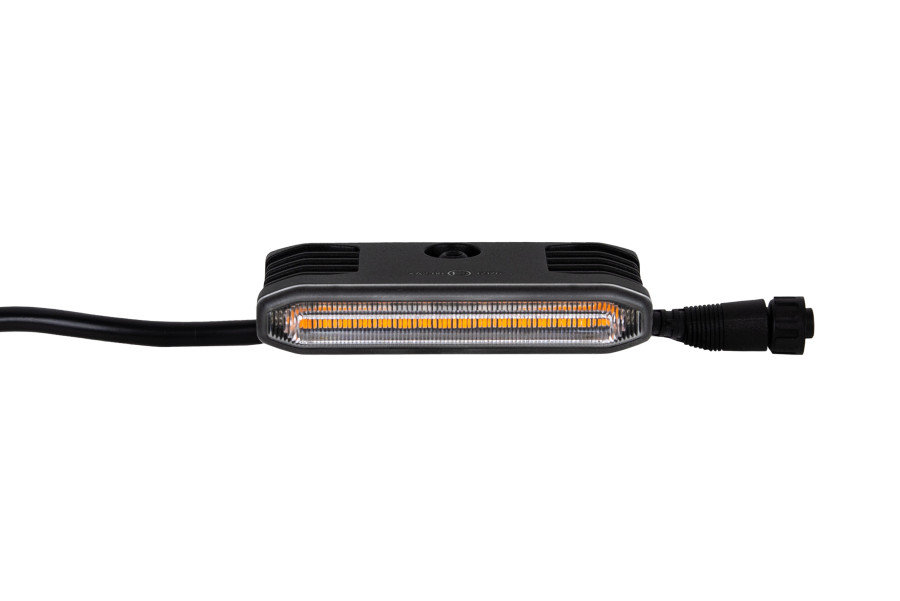

2 pcs — Work Flare Beam
1 pc — Work Flare 8.0 m starter cable
1 pc — Work Flare 0.8 m extension cable

Note! Work Bar roof racks are sold separately

Specifications

Lamp type — LED
Number of LEDs per unit — 16/24 pcs
Voltage — 10-48V DC
Consumption at 12V — 56 W
Consumption at 24V — 56 W
Number of patterns — 2 pcs
Actual lumens per unit — 620/1800 lm
1 lux at m per unit — 32/30 lx
Kelvin — 1650 K
Housing color — Black
Lens color — Clear
LED color — Amber
Connector — M12 DIN
Mounting material — Stainless steel
Chassis material — Aluminum
Lens material — PC
Operating temperature — -40 to +65°C
E-approved — Yes, according to ECE R65 XA2
EMC — ECE R10

Connection

Black cable — -(negative)
Red cable — +(positive)
Blue cable — Night mode
Yellow cable — Synchronization
