LED BAR KIT DARK KNIGHT NUUK 20, SUITABLE OPEL VIVARO 2020-
Art. Nr:930-SLD-VIVA-Y20-LRK-20

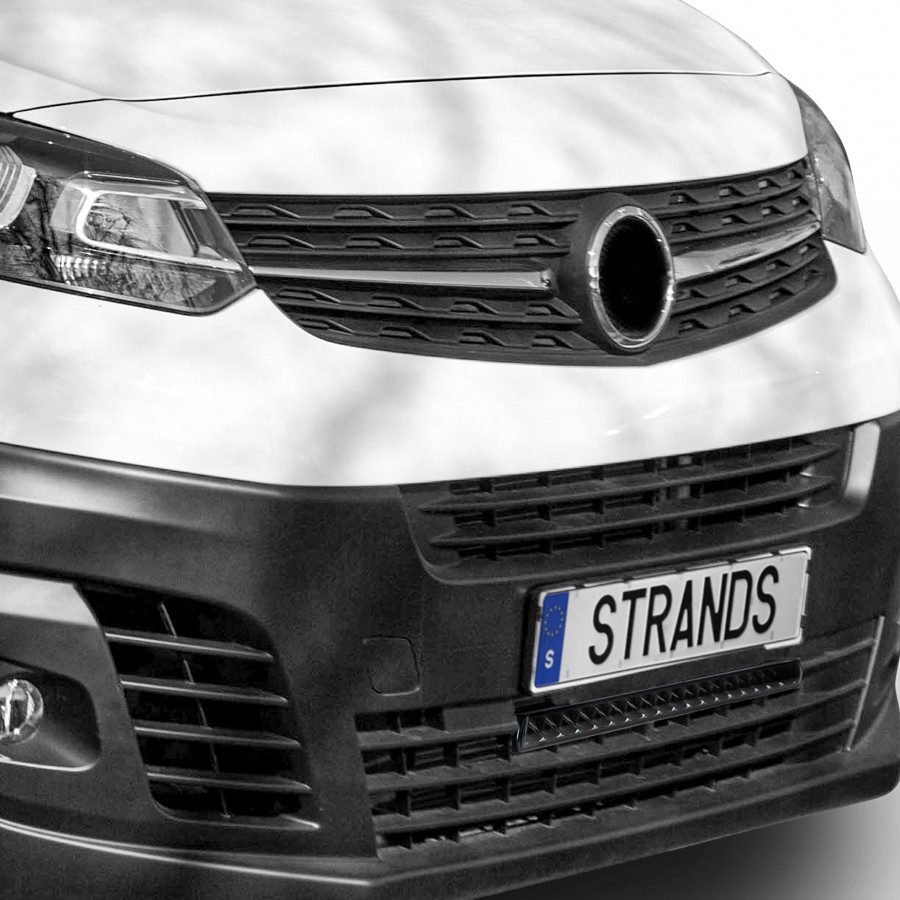

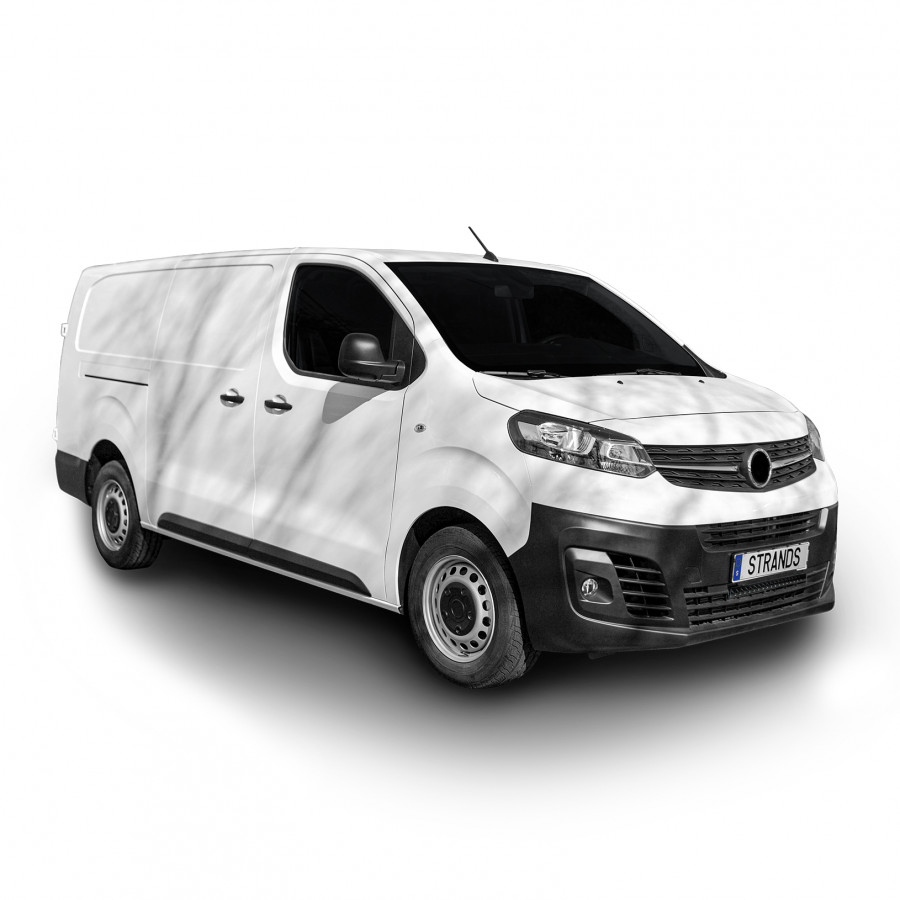

A complete model-specific LED-bar kit for OPEL VIVARO 2020-
350£
Exclude 20 % vat
Dimensions
Length:515 mm
Height:56 mm
Width:69.8 mm
Weight:6.0 KG
Information
Mounting time:180 Min
Shipped within:1 Day
Warranty:36 Mon
X
Add
Product information
A complete model-specific LED-bar kit for OPEL VIVARO 2020-
Everything needed for a clean and secure installation is included in a single package. Including:
— Dark Knight Nuuk 20 LED bar
— Model-specific mounts
— Wiring kit/relay kit with DT connector
— Mounting instructions
A real gamechanger with better performance and less consumption developed to also work for electrical vehicles. By daring to go first with a constant passion to change the market will Strands Lighting Division CO2 compensates vehicle lighting by planting a tree corresponding to 50 kg CO2 for every sold Dark Knight Nuuk. The future starts with Dark Knight Nuuk.
Dark Knight Nuuk 20 is a single row LED bar developed to showcase the best in design, brightness and technology. With a dark tinted lens and a black housing, the Dark Knight Nuuk has a stylish design and the lens that extends to the edges means that dirt does not stick and water rinse off easily. The LED bar gives you a fantastic light with a combination beam pattern, flood and spot and performs 1 Lux at 452 meters. Nuuk is E-Approved according to R112.
Type of LED — LP
PCS LED´s — 12
Voltage (V DC) — 9-36V DC
Theoretical effect (w) 12V — 120
Theoretical effect (w) 24V — 120
Consumption (w) 12V — 94
Consumption (w) 24V — 94
Consumption specific function (W) 12V — Position light: 3
Consumption specific function (W) 24V — Position light: 3,6
Theoretical lumen — 11400
Actual lumen — 9500
1 LUX @ m — 452
Kelvin — 6000
IP-class — 68/69K
Colour housing — Black
Colour lens — Black
Beam pattern — Combobeam
Position light — Amber and White
Connection — DT4
Cable length (mm) — 500
Material bracket — Side bracket: Stainless steel Bottom bracket: Aluminium
Material housing/chassi — Aluminium
Material lens — Polycarbonate
Length (mm) — 515
Depth (mm) — 69,8
Height (mm) — 38,5
Height including bracket (mm) — 51,3
Operating temperature — -40°C - +60°C
E-approved — Yes
According to regulation — ECE R7, R112
Reference number — 40
EMC — ECE R10
