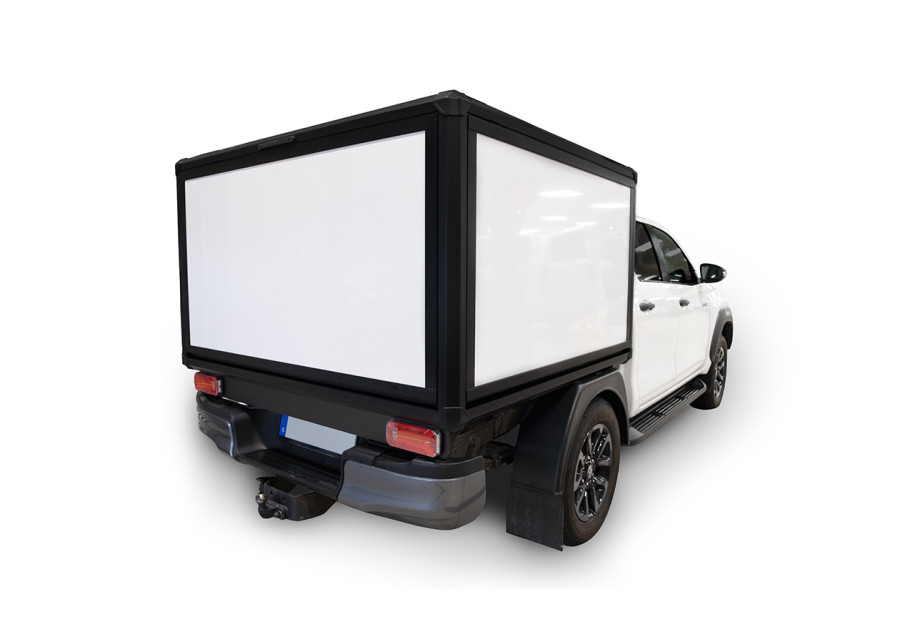

WorkBOX97 Ranger/Amarok Double Cab

Additional equipment located in the body, rear light or bumper may stop working if it cannot be moved to the WorkBOX. After moving, the equipment may need to be calibrated to achieve full functionality, any error codes may need to be extinguished by an authorized workshop. Some functions may stop working without the possibility to reset them.
After installation of the WorkBox, the vehicle should be re-inspected and the car manufacturer must create a WLTP certificate with documents for new co2 emissions.

WorkBOX97 replaces the existing flatbed to get a cover adapted for ergonomic work in harsh environments.
WorkBOX is common among, for example, power companies and nature conservation workers.
You get large doors that open from the floor to the ceiling of the vehicle, making access into the enclosure ergonomic and easy. When open, the doors also provide convenient rain protection.
The floor of the WorkBOX is completely flat without wheel arches, making it much more useful than a traditional flatbed.
With central locking on all three doors, LED interior lighting (3000 lumens) and an integrated warning light that indicates if the doors are not properly closed, safety and convenience are the focus.
The enclosure is made of an aluminum frame with sandwich panels in the walls, hatches and roof, the sandwich panels are 22mm thick and with a durable outer layer of white high gloss fiberglass laminate, which combines low weight, high durability and good insulation. The flaps fold upwards to protect against the weather and act as a practical rain cover.
The design optimizes space with slim electric locks, integrated cable channels and recessed gas dampers. Black profiles and LED indicators in the door handles give a modern look, and central locking control with timer function increases security. The hood's electronics are controlled via a built-in control box for easy installation and operation.
The fuel filler pipe is installed inside the WorkBOX, which means that no changes need to be made to the existing fuel system. The filler pipe is protected against dirt and reduces the risk of fuel theft and sabotage.
The cover comes with taillights and lighting for the directional sign with LED lights, giving a strong beam pattern and a modern look.
Impact-resistant plastic wheel arches replace existing wheel arches.

Internal dimensions:
Height: 970 mm
Width: 1710 mm
Length: 1630 mm

Opening dimensions side hatches: Width: 1480mm Height: 884mm
Rear hatch opening dimensions: Width 1580mm Height: 884mm
