Van Underfloor Drawers

Underfloor H:272mm with 4 drawers for the Citan, Kangoo & Townstar L2 Standard Double door

Art. Nr:D27-10202-L4-STD-2D

Optimise the storage in your van with a double floor.
2 088 £
Exclude 20 % vat

Dimensions

Length: 0 mm
Height: 272 mm
Width: 0 mm
Weight: 94.7 KG

Information

Mounting time: 262.61 Min
Shipped within: 3 Days
Warranty: 36 Mon
X
Add
Product information

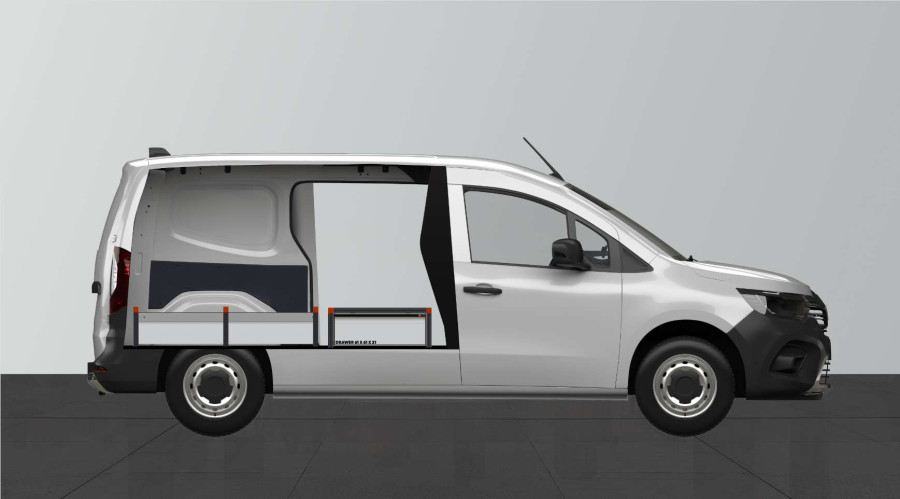

Optimise the storage in your van with a double floor. Thanks to the long, extendable drawers, you have a good overview of your materials & tools while keeping everything out of sight and secure.

Underfloors are compatible with Mercedes Citan, Renault Kangoo & Nissan Townstar L2 2022-.
NOTE! Does only fit double side doors! Does not fit EV!

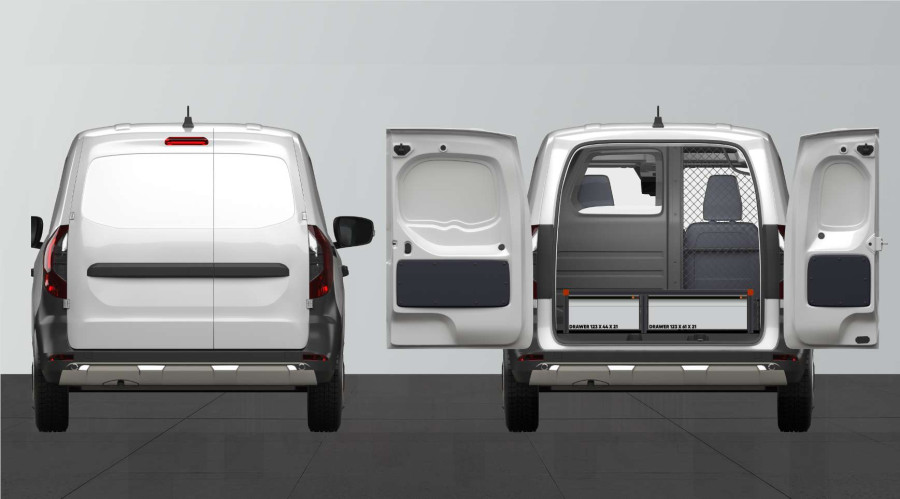

They consist of 4 drawers, of which 2 are pulled out backwards.

Width
The loading width of the rear drawers is 570 mm & 395 mm, on the side door the loading width is 395 mm.

Length
The rear drawers have a loading length of 1210 mm & 598 mm on each side doors.

Height
The loading height of all the drawers is 200 mm.
Each drawer has a maximum capacity of 65 kg of distributed load.
The maximum loading capacity on top of the Double floor is 250Kg distributed load.
