Underfloor (H:342mm) With 3 drawers for the Ford Connect L1 (2 Seater)

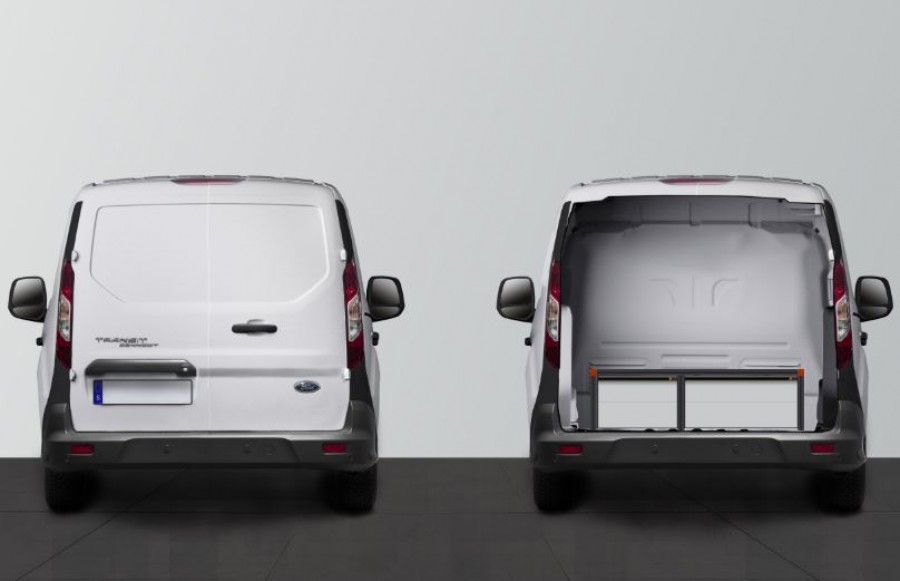

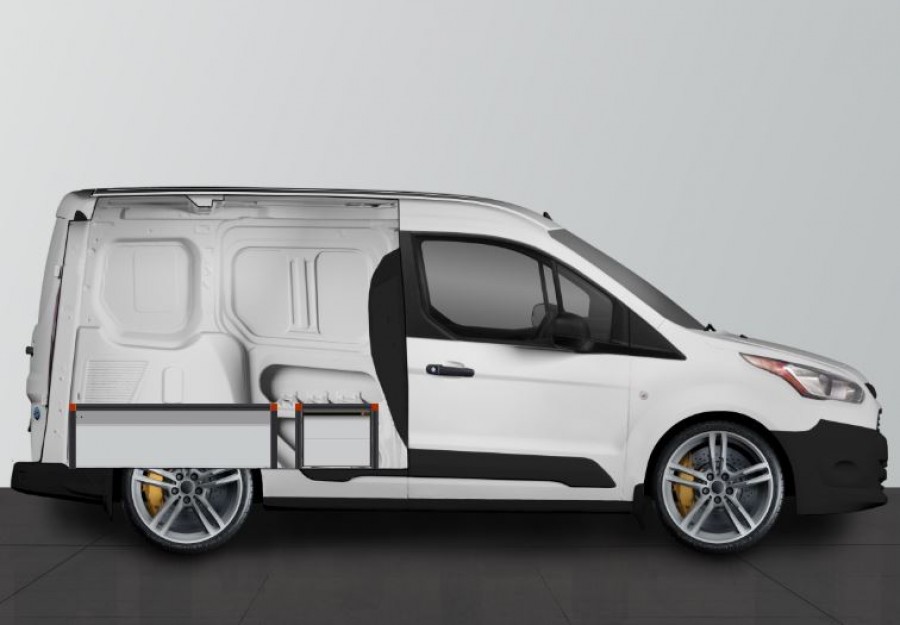

The Underfloor Drawer Unit fits the Connect L1. Optimise the storage options in your van with an Underfloor Drawer Unit. Thanks to the long pull-out drawers, you get a good overview of your material and tools while the van is in use and when its not in use all the items are hidden away and safe. This Underfloor Drawer Unit consists of three drawers, two of which are pulled out at the back of the load space and one which is pulled out through the side door.
The load height for all the drawers are 270mm. The drawers in the rear have a load length of 1035mm and the drawer located by the side door has a 1210mm load length. The load width in the drawers at the rear are 570mm and 395mm, the drawer at the side door has a 310mm load width. In each drawer you can load a maximum widespread load of 65kg. There are two different options when it comes to mounting this Underfloor Drawer Unit. Either you choose a universal mounting kit that contains angles that are then attached to the floor etc. We also offer a floor plate for faster and more efficient mounting, which is screwed into the loading eyelets. Select the mounting method in the next pop-up. Double floor
