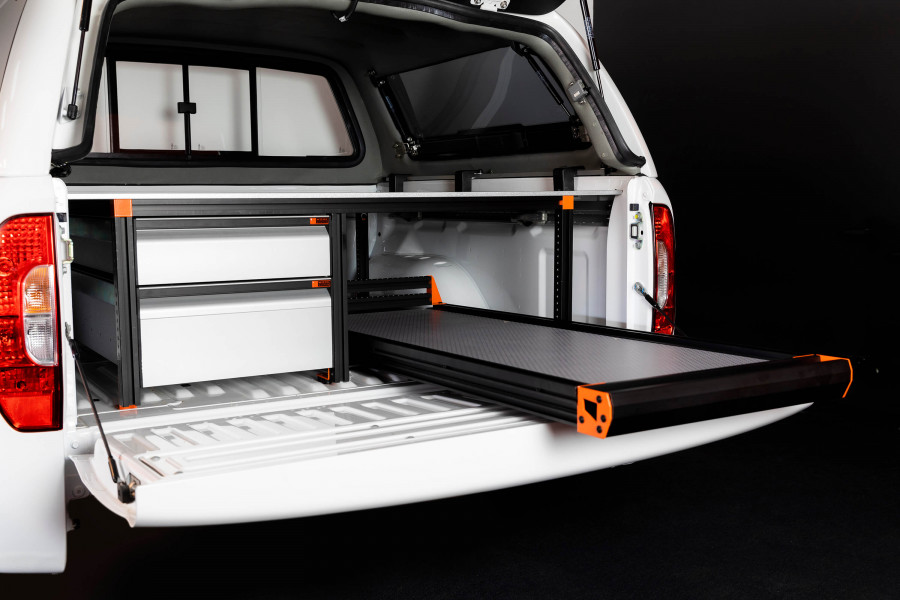

Slide & Double Floor SP-Combo Isuzu D-Max

Extendable loading slide and drawers with raised floor for Isuzu D-Max 2012-.

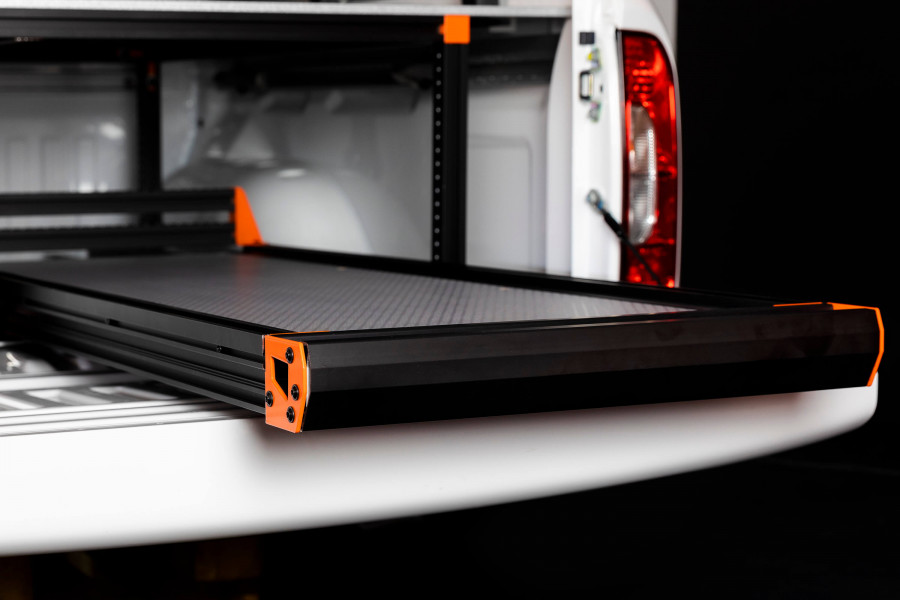

Maximise the reach inside your cargo space with a slide that pulls out. It optimises the working environment by ensuring that even heavy cargo such as tools can be pulled out and lifted from the vehicle in an ergonomically correct manner. The entire construction is made of black anodised high-strength aluminium with powder-coated steel fasteners and therefore is very low in weight to reduce the impact of the total load weight. Thanks to a totally modular concept, we can offer the right slide for your exact vehicle and needs. The slide is easily pulled out with just one hand by pressing in the locking handle while pulling the slide outwards. Spring-loaded locks and several steps along the extension length ensure that the slide stops quickly while you are loading, even if the vehicle is parked on an incline. With a wide range of accessories, you can add to your slide for the ideal interior.

Popular accessories:
Protective edge, side
Adjustable divider
Lashing eyes

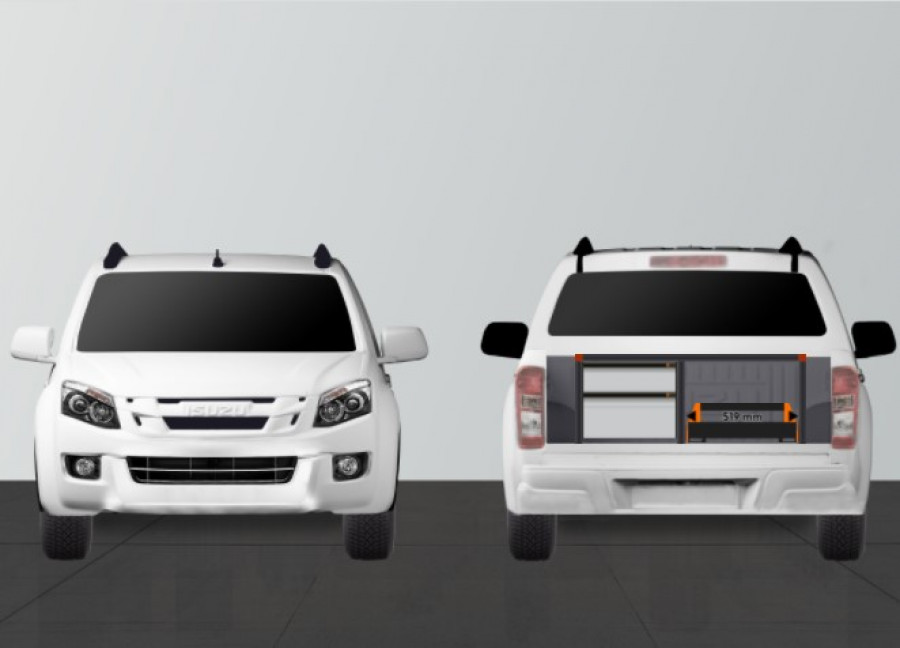

Slide external dimensions:
L: 1400 mm
W: 520 mm

Loading surface, slide:
L: 1285 mm
W: 435 mm

Loading height: 74 mm
Total height (Incl. Protective edge at the front): 180 mm
Clearance for locking bar (Excl. Spacers): 20 mm

Extension length: 930 mm
Interval Extension steps: 50 mm

Loading weight:
350 kg

The slide comes with a universal mounting kit with instructions for mounting the slide in your vehicle.
