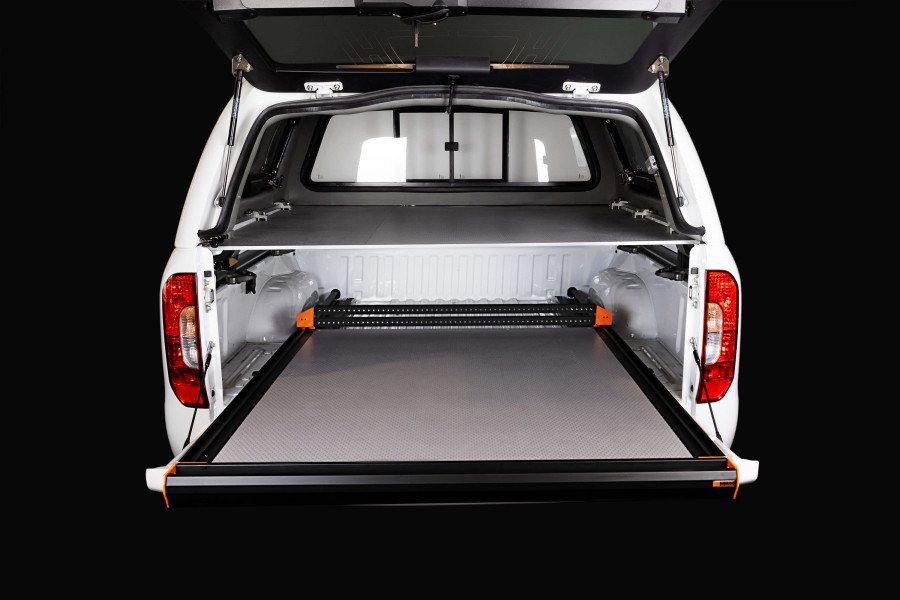

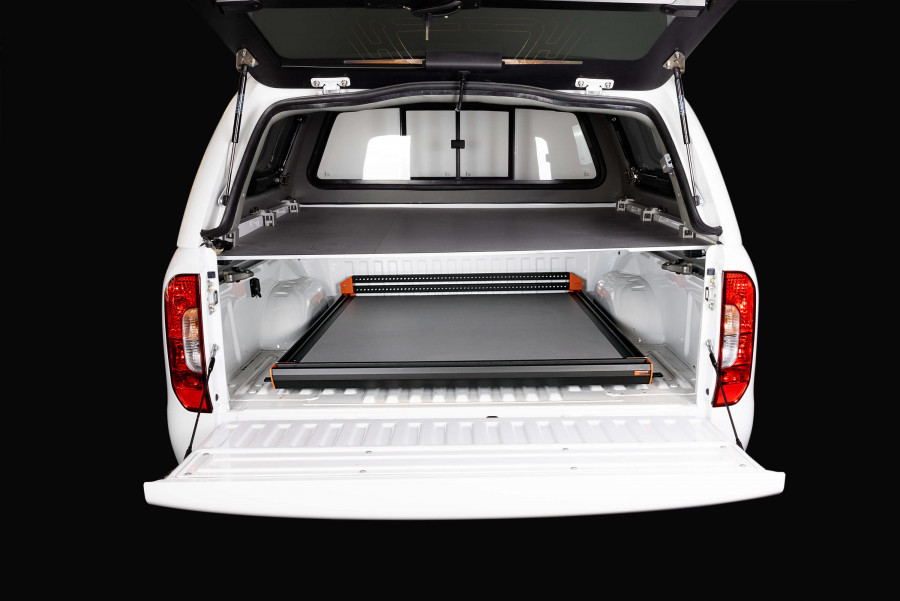

Slide & Double Floor Limb Height For Isuzu D-Max Double Cab.

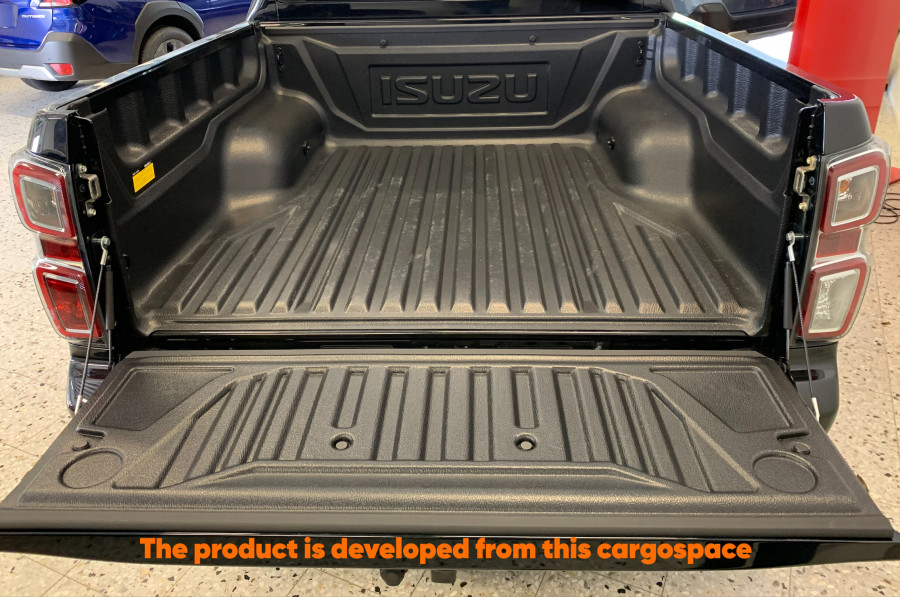

This kit is suitable for the Isuzu D-Max Double Cab from 2020 model onwards.

Optimise the storage in your van with a double floor.

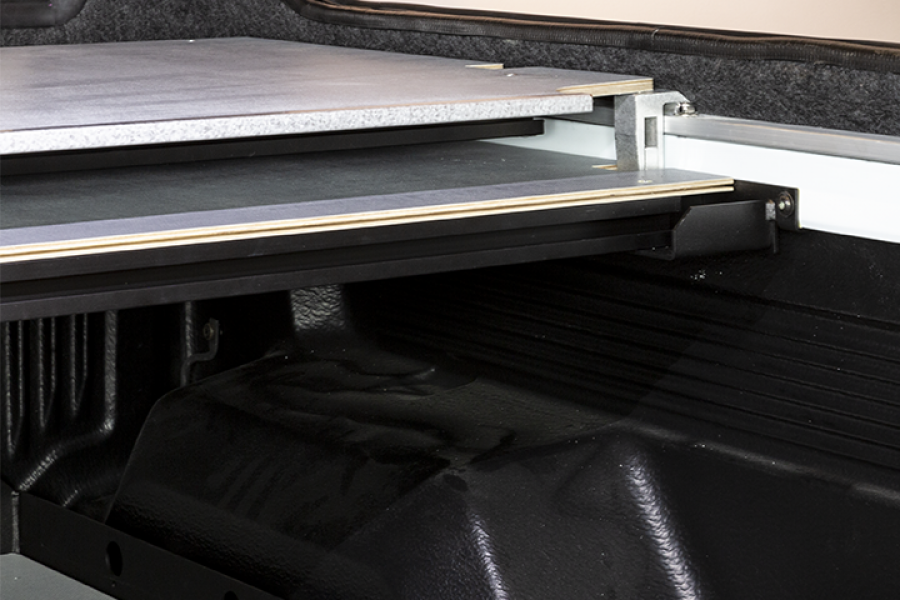

This double floor is placed at the height of the limb edge of your pick-up truck, which provides an additional surface for storing tools, materials or the like.
The panels can either be fixed or removable so you can easily load larger objects.

Height Double Floor: 450 mm
Load Height between Slide & Double Floor: 330 mm

Slide external dimensions:
L: 1400 mm
W: 1045 mm

Loading surface, slide:
L: 1285 mm
W: 960 mm

Loading height: 74 mm
Total height (Incl. Protective edge at the front): 180 mm
Clearance for locking bar (Excl. Spacers): 20 mm

Extension length: 930 mm
Interval Extension steps: 50 mm

Max. Load capacity Slide: 350 kg
Max. Load capacity, upper floor: 200 kg
(For safety reasons, we do NOT recommend loading 200 kg at this height.)

The floor boards are non-slip birch plywood.
