Slide & Double Floor Limb Height For Toyota Hilux D-Cab.
Art. Nr:SD47-HI-DH-Y15
Slide & Double Floor Limb Height For Toyota Hilux D-Cab.
1 499£
Exclude 20 % vat
Dimensions
Length:0 mm
Height:470 mm
Width:0 mm
Weight:66.0 KG
Information
Mounting time:275 Min
Shipped within:3 Days
Warranty:36 Mon
X
Add
Product information
This kit is suitable for Toyota Hilux D-Cabs from 2015 model onwards.

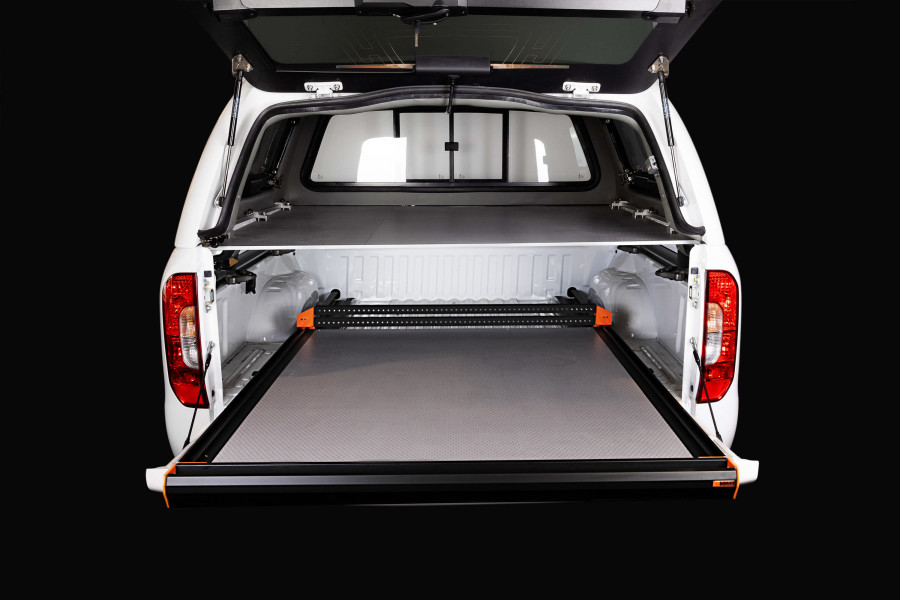

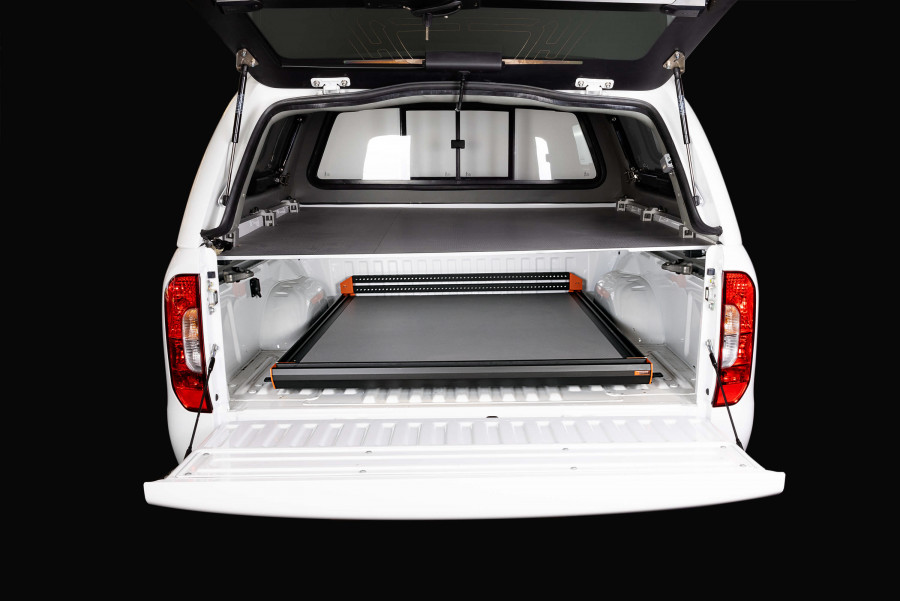

Optimise the storage in your van with a double floor & extendable slide.

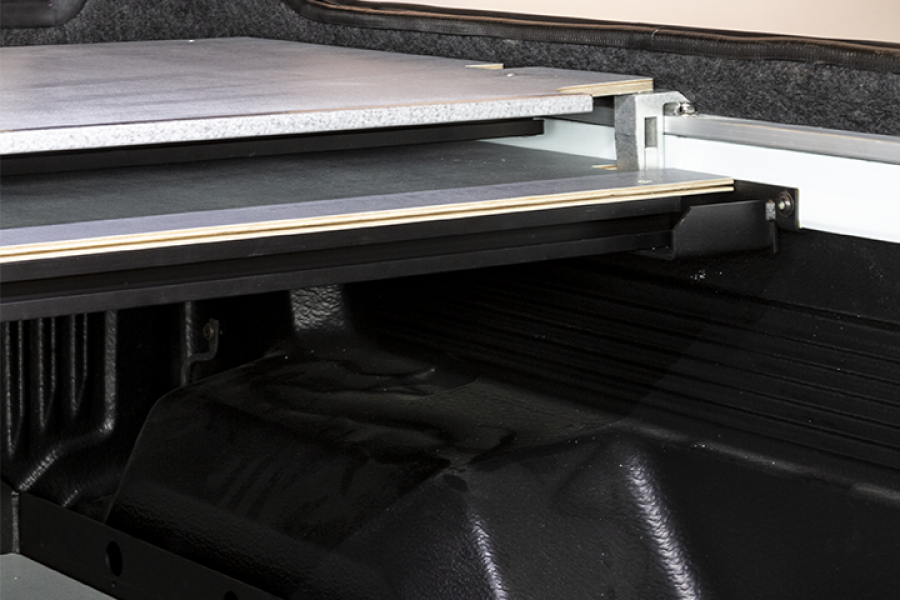

This double floor is placed at the height of the limb edge of your pick-up truck, which provides an additional surface for storing tools, materials or the like.
The panels can either be fixed or removable so you can easily load larger objects.
Height Double Floor: 470 mm
Load Height between Slide & Double Floor: 350 mm
Slide external dimensions:
L: 1400 mm
W: 1045 mm
Loading surface, slide:
L: 1285 mm
W: 960 mm
Loading height: 74 mm
Total height (Incl. Protective edge at the front): 180 mm
Clearance for locking bar (Excl. Spacers): 20 mm
Extension length: 930 mm
Interval Extension steps: 50 mm
Max. Load capacity Slide: 350 kg
Max. Load capacity, upper floor: 200 kg
(For safety reasons, we do NOT recommend loading 200 kg at this height.)
