Slide & Double Floor Limb Height For Ford Ranger.

This kit is suitable for the Ford Ranger Double Cab from 2015 model onwards.

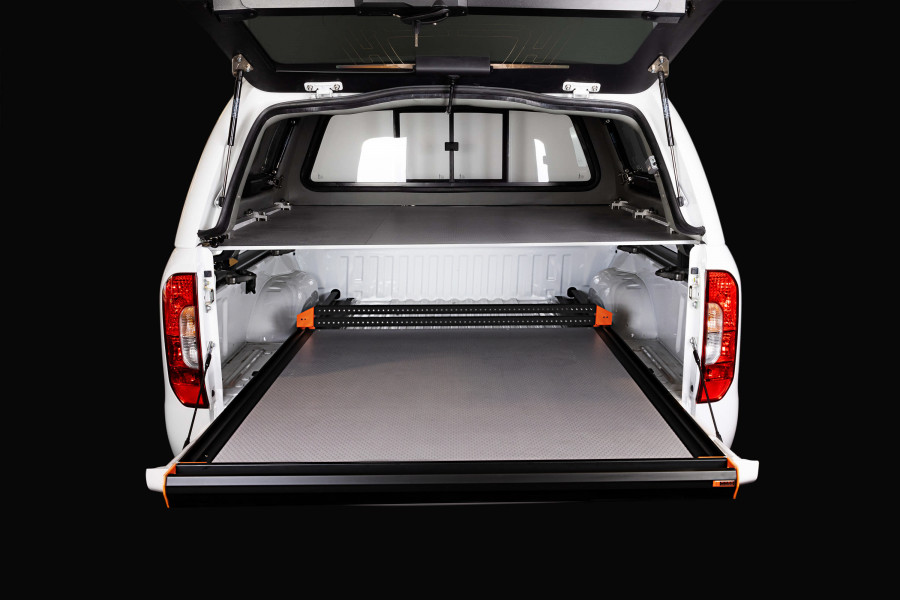

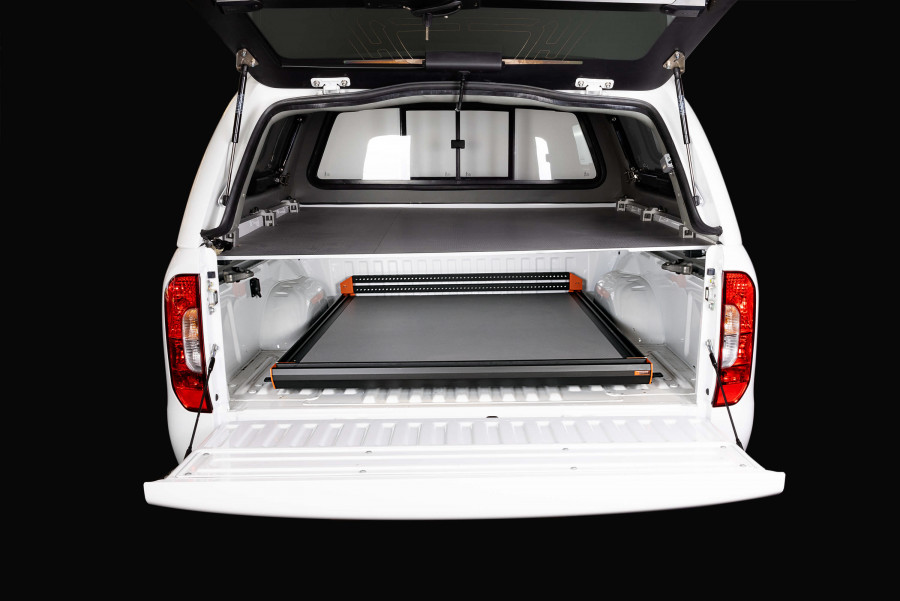

Optimise the storage in your van with a double floor & extendable slide.
This double floor is placed at the height of the limb edge of your pick-up truck, which provides an additional surface for storing tools, materials or the like.
The panels can either be fixed or removable so you can easily load larger objects.

Height Double Floor: 500 mm
Load Height between Slide & Double Floor: 380 mm

Slide external dimensions:
L: 1400 mm
W: 1080 mm

Loading surface, slide:
L: 1285 mm
W: 990 mm

Extension length: 930 mm
Interval Extension steps: 50 mm

Max. Load capacity Slide: 350 kg
Max. Load capacity, upper floor: 200 kg
(For safety reasons, we do NOT recommend loading 200 kg at this height.)

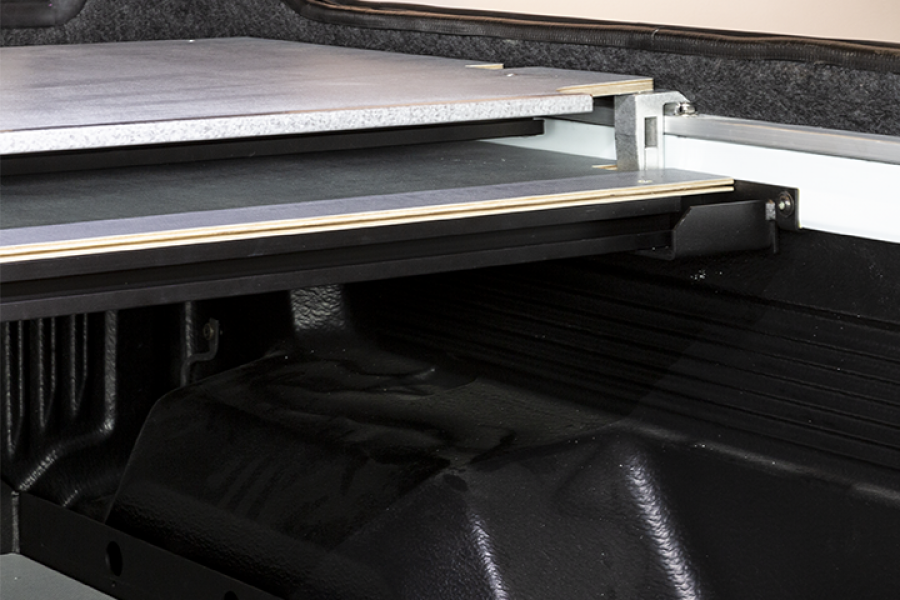

The brackets & slide are made of powder-coated steel.
The floor boards are non-slip birch plywood.
